Description

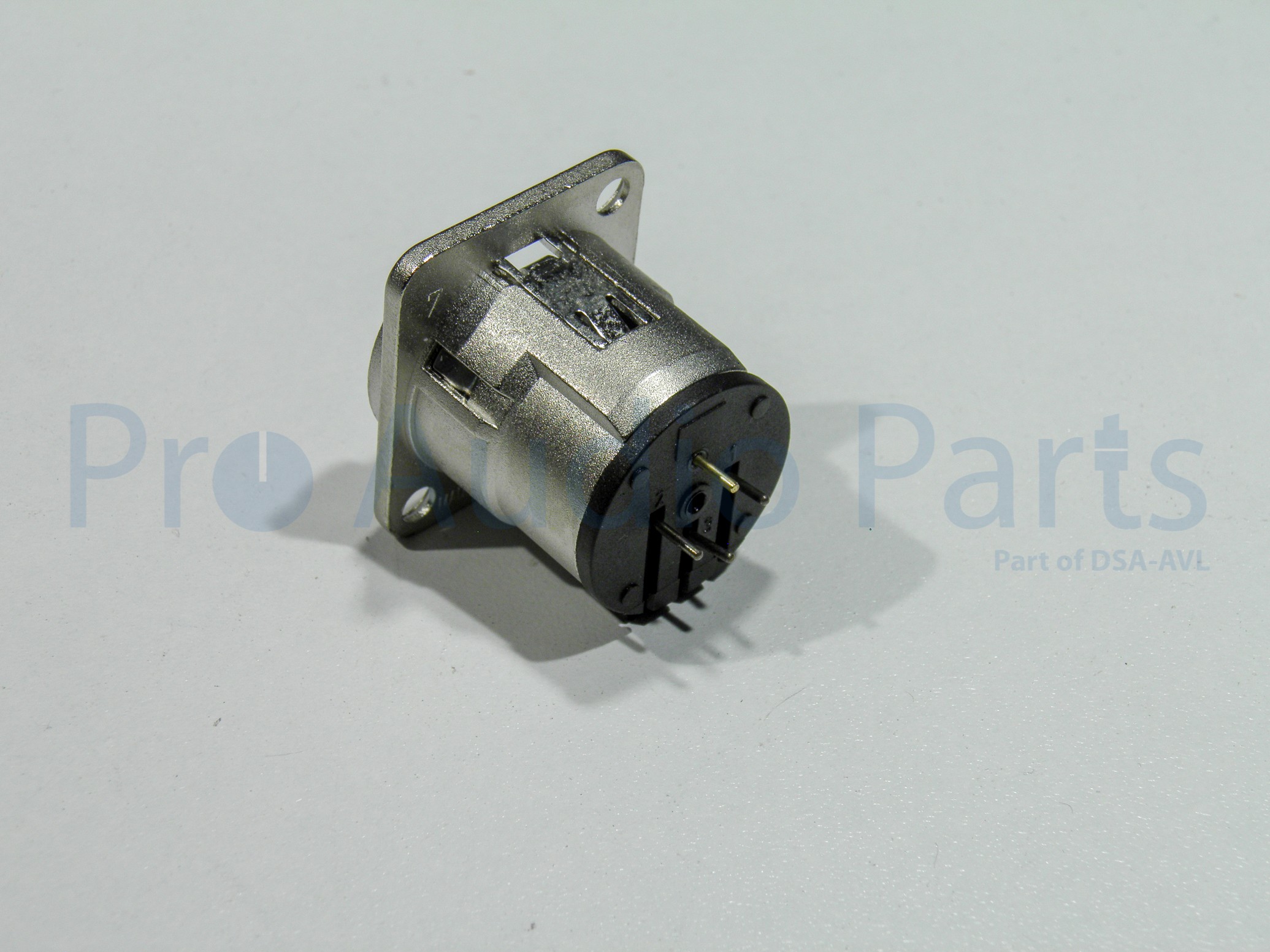

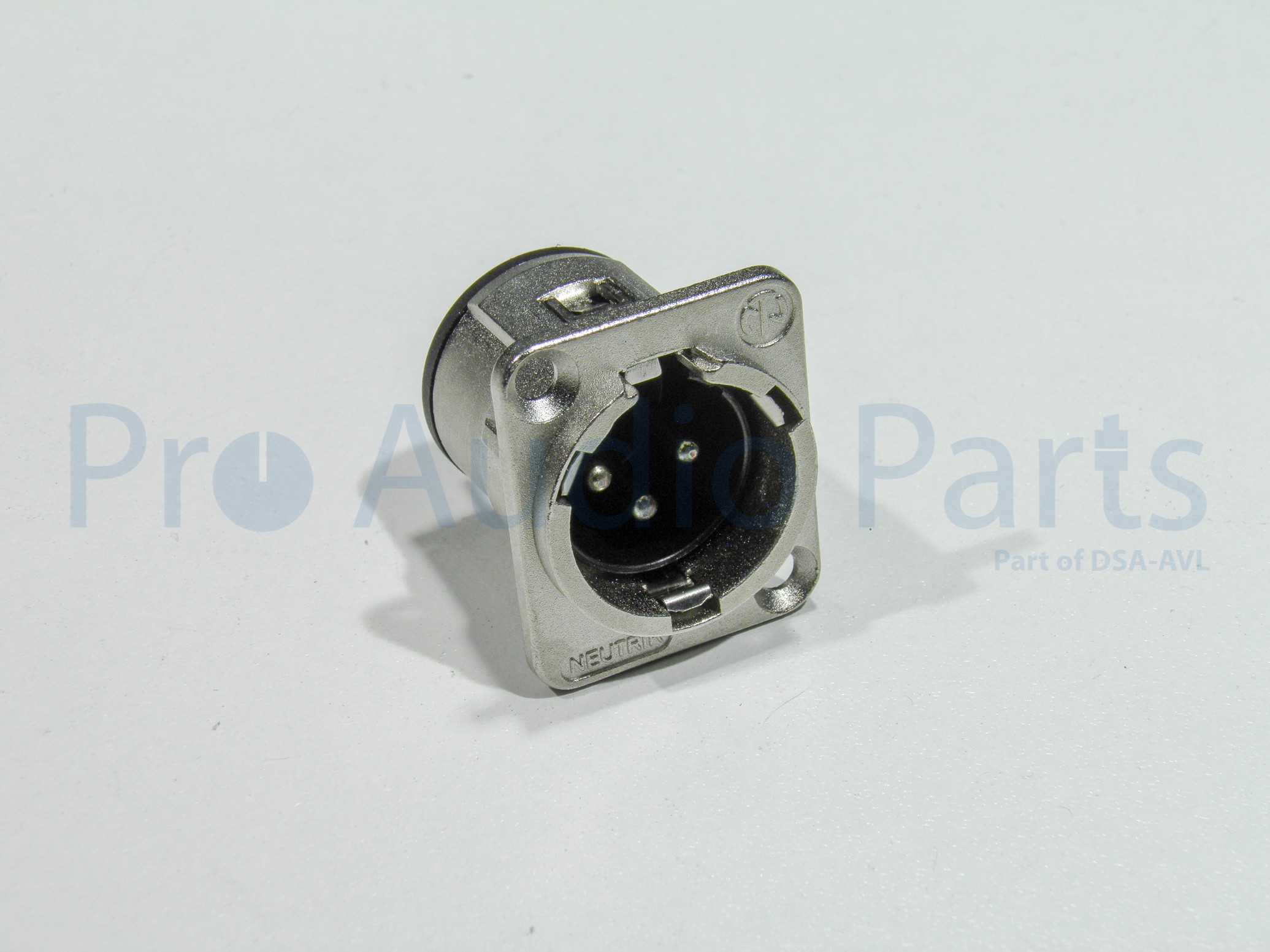

Neutrik D type connector XLR chassis 3p male NC3MDV

3 pole male receptacle, vertical PCB mount, Nickel housing, silver contacts

Universal D-size metal body XLR panel mount series for pcb mount applications.
Insert is removable from shell for ease assembling.
UL recognized component.

• D-shape metal shell
• Optimal RF protection using 3 shield contacts.
• Insert is removable from rear of connector and locked into place by internal latch – permitting assembling and testing of pcb before assembling into housing
• Front or rear panel mount

Drawing  nc3md-v-3
